Hantek HDM3055 5 1/2 Basamak Masa üstü Multimetre
Hantek HDM3055 5 1/2 Basamak Masa üstü Multimetre
Hantek HDM3055 5 1/2 Basamak Masa üstü Multimetre
Hantek HDM3055 5 1/2 Basamak Masa üstü Multimetre
Hantek HDM3055 5 1/2 Basamak Masa üstü Multimetre
Hantek HDM3055 5 1/2 Basamak Masa üstü Multimetre
Hantek HDM3055 5 1/2 Basamak Masa üstü Multimetre

Hantek HDM3055 5 1/2 Basamak Masa üstü Multimetre

Marka : HANTEK
İndirim Oranı : %37 İndirim
Fiyat : $900.00(KDV Dahil)
İndirimli : $570.00(KDV Dahil)

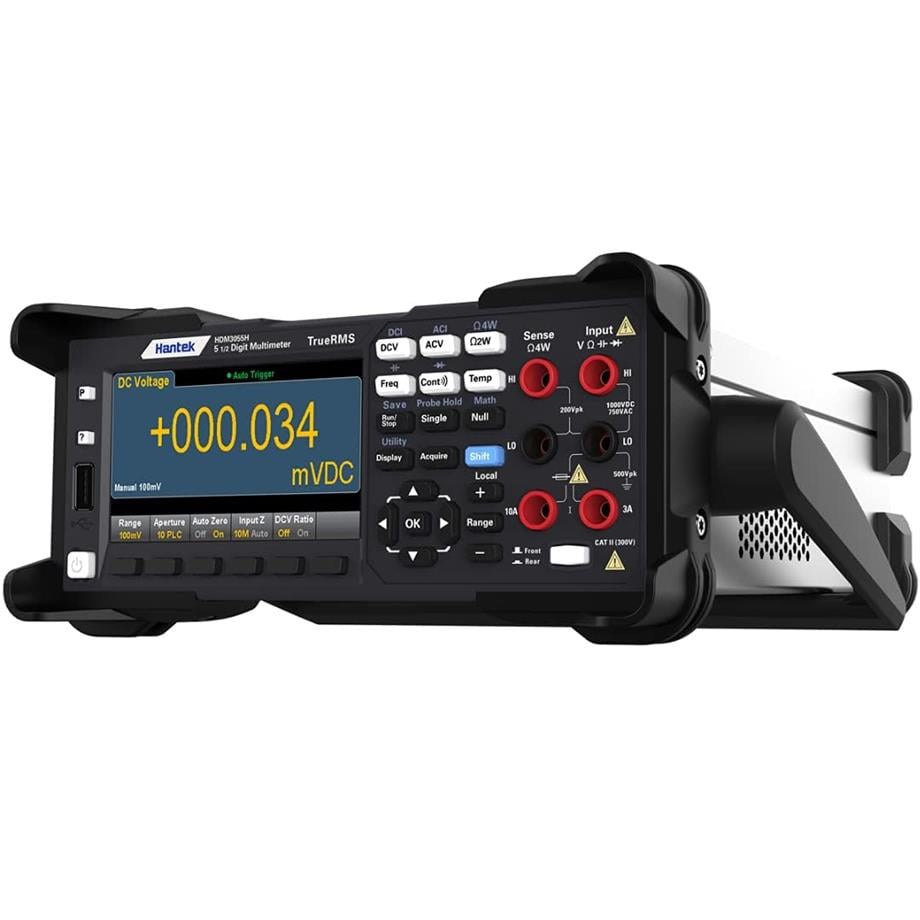

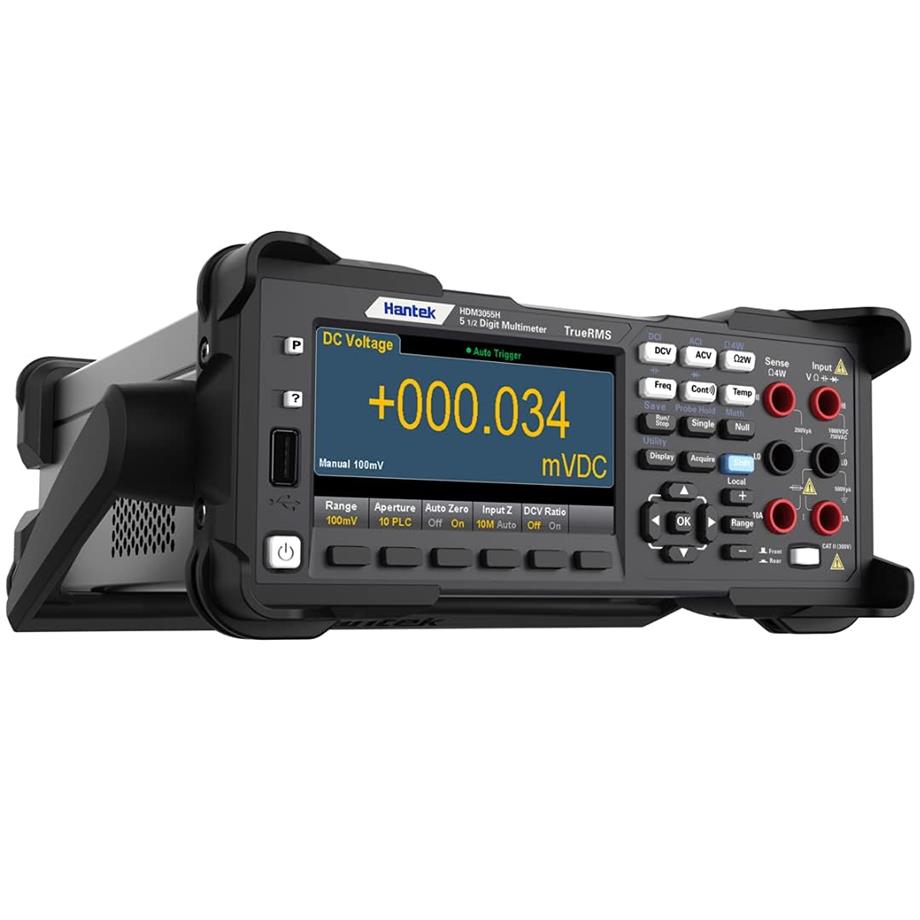

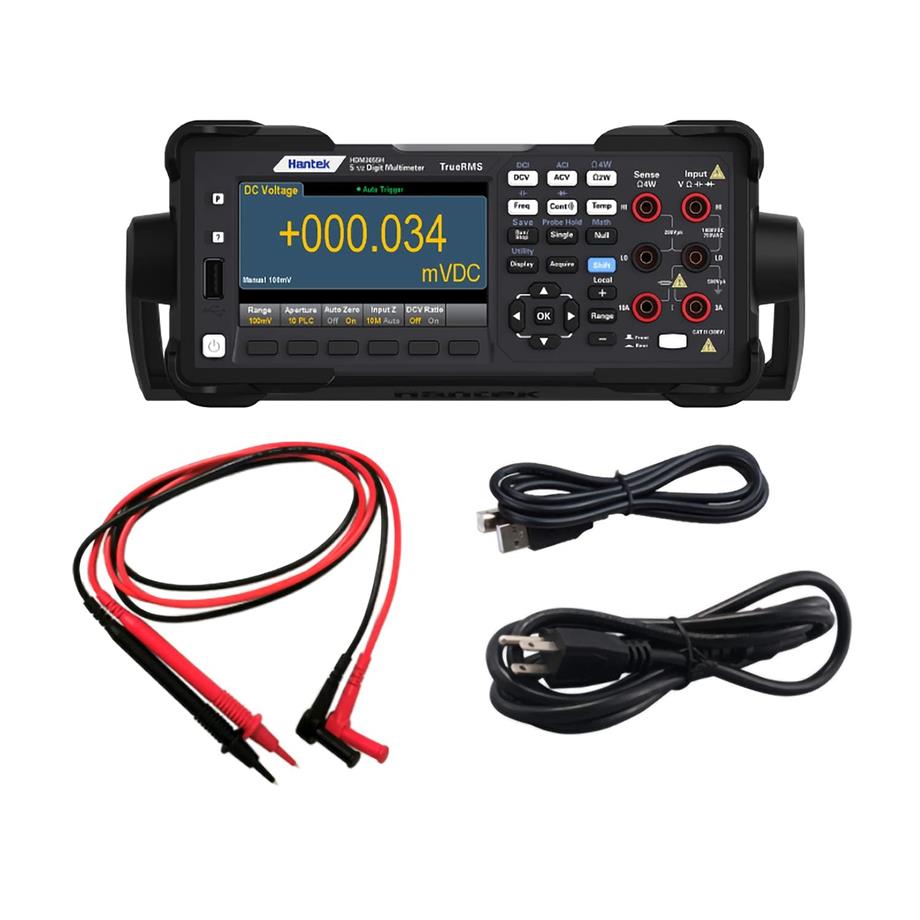

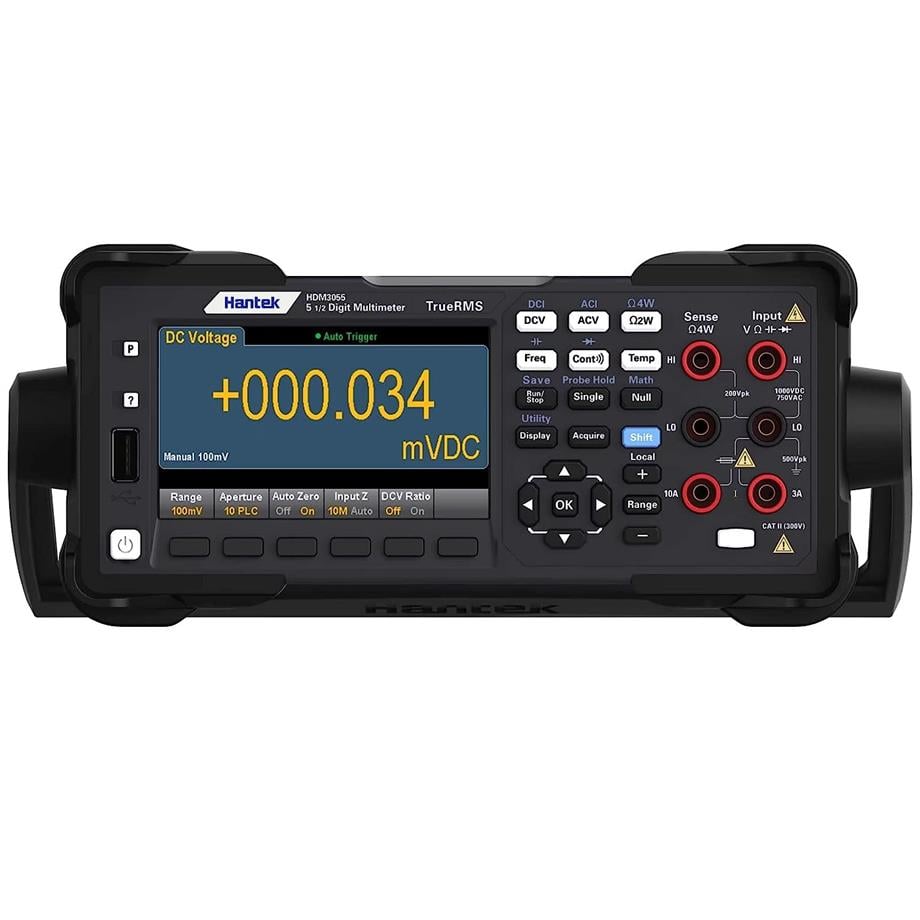

Hantek 5 1/2 Digit Multimetre

:

  Teknik Döküman





1 μV yüksek çözünürlüklü 5 1/2 okuma multimetre;Geçici sinyallerin yakalanmasını kolaylaştıran

30 kS/s yüksek hızlı örnekleme frekansı;

Kabloları düzenlemek için kolaylık sağlayan önde ve arkada iki set giriş arabirimi;

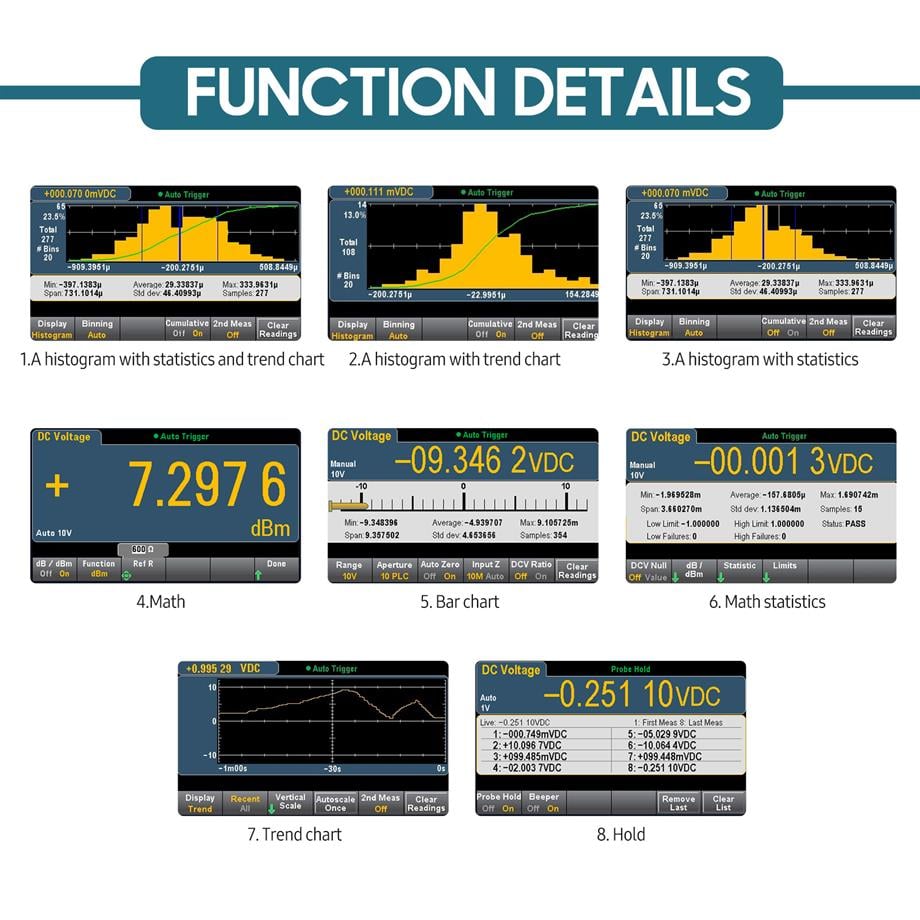

Çubuklu standart grafik, histogram, trend tablosu ve veri istatistikleri fonksiyonları;

Çift ekran ölçüm fonksiyonu, eşzamanlı olarak voltaj ve frekansı görüntüleme;

AC voltajın Ture RMS'si ve AC akım ölçümlerinin gerçek RMS'si;

0,1 μV çözünürlük, basit kullanım, esnek parametre ayarı;

Çeşitli ölçümler fonksiyonlar: DC voltajı, AC voltajı, DC akımı, AC akımı,

2 hatlı direnç, 4 hatlı direnç, kapasitans, diyot, bağlantı, frekans, dönem, sıcaklık, 10 A'e ulaşan akım aralığı ile;

4,3 inç renkli LCD ekran ;

Güvenlik standardı: CAT II 300 V;



Range2 /frequency      24 hours3          90 days 1 year     2 years       temperature coefficient/℃ 4
DC Voltage       TCAL±1℃       TCAL±5℃ TCAL±5℃                  TCAL±5℃
100 mV 0.0030+0.0030 0.0040+0.0035 0.0050+0.0035 0.0065+0.0035 0.0005+0.0005
1 V 0.0020+0.0006 0.0030+0.0007 0.0040+0.0007 0.0055+0.0007 0.0005+0.0001
10 V 0.0015+0.0004 0.0020+0.0005 0.0035+0.0005 0.0050+0.0005 0.0005+0.0001
100 V 0.0020+0.0006 0.0035+0.0006 0.0045+0.0006 0.0060+0.0006 0.0005+0.0001
1000 V 0.0020+0.0006 0.0035+0.0010 0.0045+0.0010 0.0060+0.0010 0.0005+0.0001
True RMS AC voltage2,5,6
100 mV、1 V、10 V、100 V and 750 V range
5 Hz - 10 Hz 0.35+0.02 0.35+0.03 0.35+0.03 0.35+0.03 0.035+0.003
10 Hz-20 KHz 0.04+0.02 0.05+0.03 0.06+0.03 0.07+0.03 0.005+0.003
20 KHz-50 KHz 0.10+0.04 0.11+0.05 0.12+0.05 0.13+0.05 0.011+0.005
50 KHz-100 KHz 0.55+0.08 0.60+0.08 0.60+0.08 0.60+0.08 0.060+0.008
100 KHz-300 KHz 4.00+0.50 4.00+0.50 4.00+0.50 4.00+0.50 0.200+0.020
Resistance7 Testing current
100 Ω 1 mA 0.0030+0.0030 0.008+0.004 0.010+0.004 0.012+0.004 0.0006+0.0005
1 kΩ 1 mA 0.0020+0.0005 0.008+0.001 0.010?0.001 0.012+0.001 0.0006+0.0001
10 kΩ 100 μA 0.0020+0.0005 0.008+0.001 0.010+0.001 0.012+0.001 0.0006+0.0001
100 kΩ 10 μA 0.0020+0.0005 0.008+0.001 0.010+0.001 0.012+0.001 0.0006+0.0001
1 MΩ 5 μA 0.002+0.001 0.008+0.001 0.010+0.001 0.012+0.001 0.0010+0.0002
10 MΩ 500 nA 0.015+0.001 0.020+0.001 0.040+0.001 0.060+0.001 0.0030+0.0004
100 MΩ 500 nA‖10 MΩ 0.300+0.010 0.800+0.010 0.800+0.010 0.800+0.010 0.1500+0.0002
DCcurrent Potential drop of internal resistance
100 μA <0.11V 0.010+0.020 0.040+0.025 0.050+0.025 0.060+0.025 0.0020+0.0030
1 mA <0.11V 0.007+0.006 0.030+0.006 0.050+0.006 0.060?0.006 0.0020+0.0005
10 mA <0.05V 0.007+0.020 0.030+0.020 0.050+0.020 0.060+0.020 0.0020+0.0020
100 mA <0.5V 0.010+0.004 0.030+0.005 0.050+0.005 0.060+0.005 0.0020+0.0005
1 A <0.7V 0.050+0.006 0.080+0.010 0.100+0.010 0.120+0.010 0.0050+0.0010
3 A <2.0V 0.180+0.020 0.200+0.020 0.200+0.020 0.230+0.020 0.0050+0.0020
10 A8 <0.5V 0.050+0.010 0.120+0.010 0.120+0.010 0.150+0.010 0.0050+0.0010
Capacitance15
1.0000 nF 0.50+0.50 0.50+0.50 0.50+0.50 0.50+0.50 0.05+0.05
10.000 nF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
100.00 nF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
1.0000 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
10.000 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
100.00 μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01
Range2/frequency     24hours3     90days    1year  2years     temperature coefficient/℃4
 TCAL ± 1℃            TCAL ± 5℃                 TCAL ± 5℃ TCAL ± 5℃
True RMS AC current2,6,9 Potentia drop of internal resistance
100 μA、1 mA、10 mA and 100 mA range <0.011,<0.11,     <0.05,<0.5V
3 Hz - 5 kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.015+0.006
5-10kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.030+0.006
(typicalvalue)
1Arange <0.7V
3Hz-5kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.015+0.006
5 kHz - 10 kHz(Typicalvalue) 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.030+0.006
3 A Range <2.0V
3 Hz - 5 kHz 0.23+0.04 0.23+0.04 0.23+0.04 0.23+0.04 0.015+0.006
5 kHz - 10 kHz 0.23+0.04 0.23+0.04 0.23+0.04 0.23+0.04 0.030+0.006
(Typicalvalue)
10 A Range8 <0.5V
3 Hz - 5 kHz 0.15+0.04 0.15+0.04 0.15+0.04 0.15+0.04 0.015+0.006
5 kHz -10 kHz(Typicalvalue) 0.15+0.04 0.15+0.04 0.15+0.04 0.15+0.04 0.030+0.006
Connectivity
1 kΩ 0.002+0.030 0.008+0.030 0.010+0.030 0.012+0.030 0.0010+0.0020
DiodeTesting10
5 V 0.002+0.030 0.008+0.030 0.010+0.030 0.012+0.030 0.0010+0.0020
DCrate(Typicalvalue)
(Normalize precision input)+(Normalize reference accuracy)
Temperature11
PT100 (DIN/IEC751) Theprobe accuracy+0.05℃
5 kΩ thermistor Theprobe accuracy+0.1℃
Frequency:Technical Indicator±(%reading)12.13
100mV、1V、10、100V and 750 V range 14
3 Hz-10 Hz 0.1 0.1 0.1 0.1 0.1
10 Hz-100 Hz 0.03 0.03 0.03 0.03 0.035
100 Hz-1 KHz 0 0.008 0.01 0.01 0.015
1 KHz-300 KHz 0.002 0.006 0.01 0.01 0.015
Square wave15 0.001 0.006 0.01 0.01 0.015
Extra Gate timeerror ± (%reading)13
Frequency 1second 0.1second 0.01second
3 Hz-40 Hz 0 0.2 0.2
40 Hz-100 Hz 0 0.06 0.2
100 Hz-1 KHz 0 0.02 0.2
1 KHz-300 KHz 0 0.004 0.03
Square wave15 0 0 0
1.For DC:technical indicators are valid after 60 minutes of preheating, set to 10 or 100NPLC in the integral period, and enable automatic zero setting.For AC:technical indicators are effective when preheating for 60 minutes, using slow ac filter and sine wave
2.All ranges have 20% overrange except for 1,000DCV、750ACV、10ADC、3AAC、10AAC and diode testing.
3.Relative to the calibration standard
4.Outside of the range of TCAL±5℃,each degree(℃) increases a coefficient.
5.Technical indicators arei valid when sinusoidal wave is input >5% range and >1mVrms.  The 750ACV range is limited to 8× 107v-hz.
For inputs within 1% and 5% of range and frequency<50 kHz, add 0.1% of range additional error. For 50kHz to 100kHz, add 0.13% of range additional error
6.Low frequency performance:three filter Settings are provided:3Hz、20Hz、200Hz.The frequency beyond the filter setting has been specified, no additional errors will occur.
7.Technical indicators are suitable for 4 lines or 2 lines measurement(peration bias returns to zero)resistance measurement.If there is no mathematical null, 2 lines resistance measurement will increase 0.2 Ω additional error.
8.The 10A range is provided on the front connector only.Each amplifier adds a 2mA base current value, or input current >5Arms.
9.Technical indicators are valid when sine wave is input >1.5% range and >10μAAC.    10.Technical indicators are suitable for the voltage measured at the input end.1mA test current is typical.The change of current source will lead to the change of voltage drop of diode junction
11.The selected probe limits the actual measuring range and measurement errors.Probe accuracy has included all measurement and ITS-90 temperature conversion errors.PT100Ro can be set to 100Ω±5Ω, to eliminate the original probe error.
12.Unless otherwise indicated, the technical indicators are valid after 60 minutes of warm-up and with sinusoidal input.Technical indicators are suitable for 1s gate time.(7 bits)
13.Suitable for sinusoidal and square wave input ≥100mV.For 10mV to 100mV inputs, multiply the reading error % by 10.
14.The range is 10% to 120% below 750ACV.
15.The square wave input is specified as 10Hz-300kHz.
